Product Overview

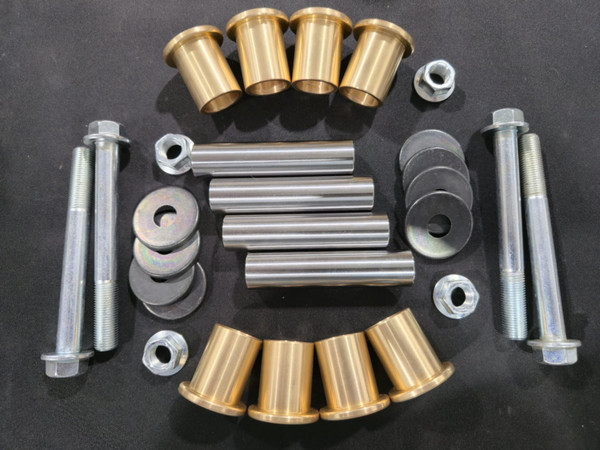

Ridge 1000 HD Rear Hub Bushings

Fits:
All years and models Ridge 1000

This is a premium rear hub bushing assembly designed to outlast the machine itself. The factory rubber bushings allow tire wobble, resulting in unstable handling and excessive tire wear.

Unlike UHMW bushings, which work well in A-arms with long spans, these bushings use high-grade bearing bronze that can absorb heavy impacts without deforming in the short hub span.

Portal Owners:
These fit SATV portal plates. We highly recommend using our larger hardware option.

Features:

Fully sealed, greasable assembly
High-grade bearing bronze bushings
Precision-ground, hardened oversized pins
Large square O-rings to keep contaminants out
Grease fitting kit included to drill and tap your knuckle for a grease zerk

Includes:

8 bearing bronze bushings (O-rings pre-installed)
4 precision-ground, hardened pins (choose your preferred size)
8 wear caps
5 grease zerks
Drill and tap

Hub Bolt Options:

OEM-Size Bolt

Perfect for the average rider
Reuses factory rear hub hardware
No modifications required

Large Bolt

Recommended for portal machines and large tires
Based on our experience with Teryx 800 and Mule portal setups, the factory bolt is simply too small to handle the added load, regardless of bolt grade or thread pitch.
Requires drilling the A-arm tabs to 1/2"
A step bit is recommended for a clean, precise hole
Eliminates concerns about breaking hub hardware

Installation Notes:
