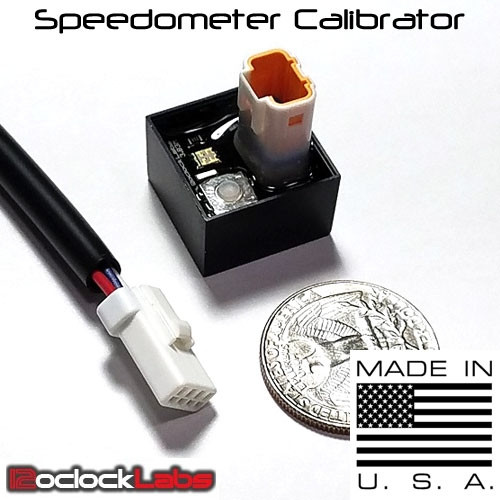

SPEEDOMETER CALIBRATOR- KAWASAKI

$79.99
SPEEDOMETER CALIBRATOR- KAWASAKI
SKU:
SDRD-KAW-SC
Adding to cart… The item has been added

Product Overview

SPEEDO DRD SPEEDOMETER CALIBRATOR

Fits:

  • 2024–Current Kawasaki Ridge 1000

  • 2020–Current Kawasaki KRX 1000

  • 2025–Current Kawasaki H2 1000

  • 2012–2013 Kawasaki Teryx 4 (T4)

  • 2014–Current Kawasaki Teryx (all models, Including S Models)

Features:

  • Corrects inaccurate speedometer readings caused by vehicle modifications

  • Plug-and-play with OEM-style connectors

  • No cutting or splicing required

  • Installs between the factory speed sensor and vehicle wiring

  • 5-minute installation and setup

  • Infinitely adjustable and reprogrammable

  • Built-in testing mode for easy verification of installation

  • Works with both MPH and KPH displays

  • Converts MPH to KPH or KPH to MPH

  • Weatherproof design

  • 18" (1.5 ft.) wiring harness

  • Widest calibration range available with percentage and multiplier/divider adjustment

Corrects Speedometer Errors Caused By:

  • Portal or transmission reductions that cause the speedometer to read higher than actual speed and accumulate unnecessary mileage

  • Larger tires that cause the speedometer to read slower than actual speed

Installation:

  • Installation instructions are included.

  • Use the Speedo DRD setup calculator to determine the correct adjustment:

  • Version: 4.20M

  • Use a GPS speed reading for calibration.

  • Example:

    • Speedometer reads 65 MPH

    • Actual GPS speed is 60 MPH

    • Enter the values into the calculator and follow the generated programming instructions.

  • You can reprogram the unit as many times as needed to fine-tune the calibration.

  • Example: On our Ridge Crew Non-XR with 35" tires, the recommended correction was 34%, but final calibration was 26% reduction.

Example Programming (22.5% Correction):

  • Turn the ignition ON (engine not running).

  • Hold the button for 5 red blinks, then release (Percentage Adjustment Mode).

  • Hold the button until the LED turns green, then release (positive adjustment).

  • Hold for 2 green blinks, then release.

  • Hold for 2 green blinks, then release.

  • Hold for 5 green blinks, then release.

  • Programming is complete.

OEM Speed Sensor Part Numbers:

  • Ridge 1000: 21176-0891

  • KRX 1000: 21176-0891

  • Teryx: 21176-0712
