Product Overview

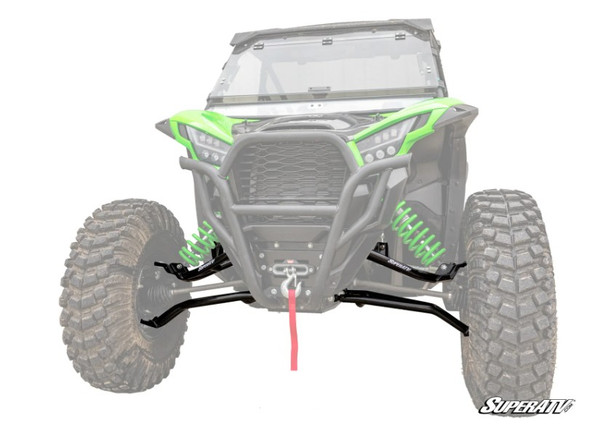

Kawasaki KRX 1000 High Clearance 1.5" Forward Offset A-Arm
Increase ground clearance, improve stability, and gain room for larger tires with these high-clearance 1.5" forward offset A-arms for the Kawasaki KRX 1000. These arms are ideal for those with a winch in the factory location.
Features:
-
High-clearance arched design for improved ground clearance
-
1.5" forward offset increases wheelbase for added stability
-
Made from 1.25" diameter steel tubing
-
Full camber adjustment
-
Provides additional clearance for larger tires
Includes:
-
Pair of high-clearance A-arms ( Both driver and passenger front)
-
8 new coated jam nuts for the adjustment blocks
Does Not Include:
-
Ball joints (reuse OEM ball joints)
-
Bushings (reuse OEM bushings or install aftermarket bushings)
Installation Notes:
-
These arms come pre-set with approximately 10 mm of thread showing past the jam nut.
-
We recommend installing the supplied jam nuts before installation. Remove the adjustment block from the arm, remove the original nut, thread both new nuts fully onto the adjustment block, reinstall the block until no threads are showing, then tighten both nuts together. Double-nutting the adjustment block helps prevent the original single nut from loosening and damaging the threads.
-
Brute Performance supplies new coated jam nuts because the factory nuts are not coated and are prone to rust.
-
We Do not reccomend to install the steering stops in the steering rack. Although the steering knuckle will contact the stop on the A-arm initially, it will wear in during use and function properly.
